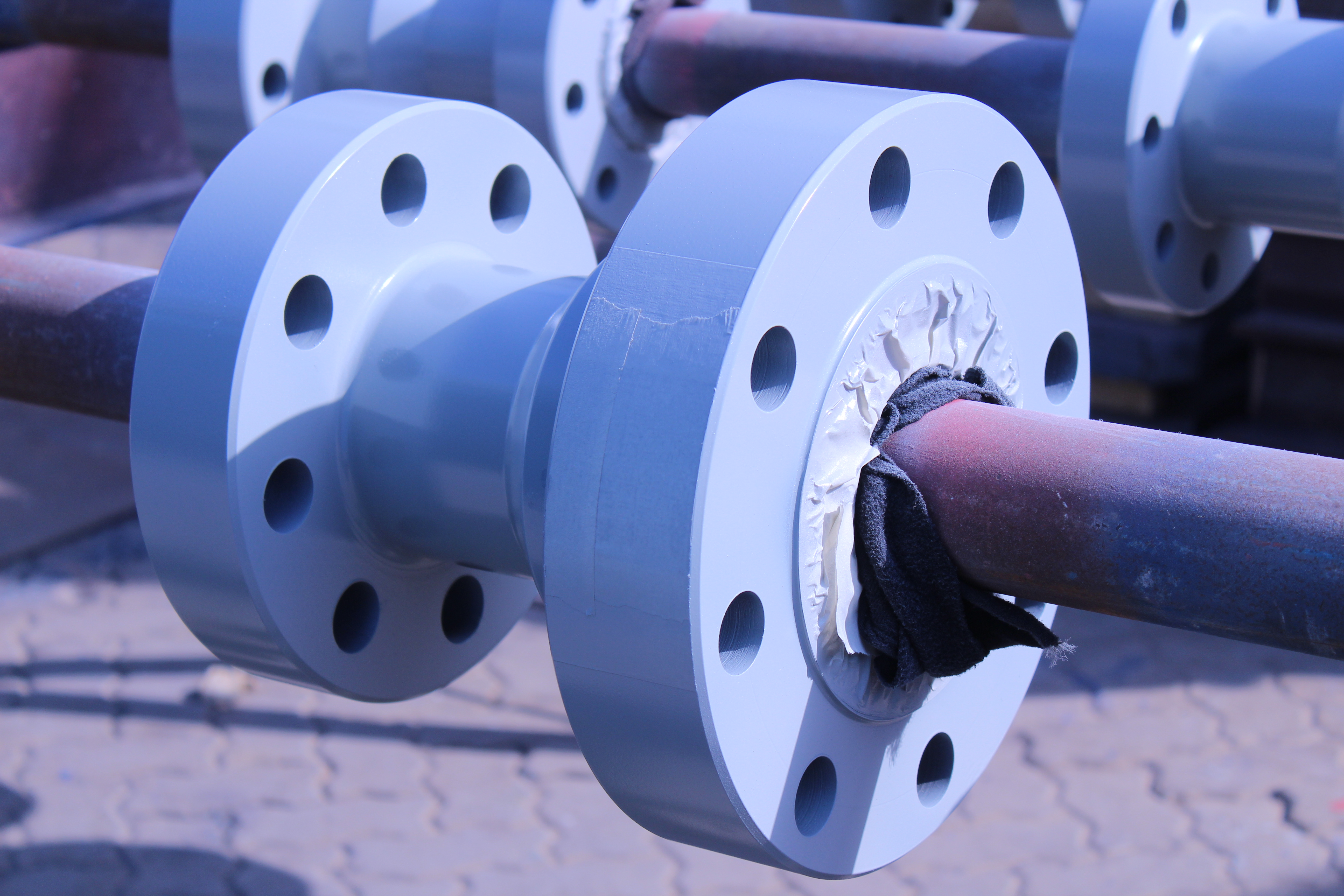

Adapter and Spacer Spools are used in well head extensions, BOP spacing’s, Choke, kill and production manifold applications.
Adapter Spools have different flanged end connections (6B & 6BX type) & pressure ratings as per API 6A spec whereas Spacer spools ,which go by several industrial terms like blast spools,risers, riser spools have same nominal end connections .
Customers can specify the combination of end connections and overall lengths. All spools produced by EMMET shall have minimum OAL with adequate clearance to accommodate studs, nuts where applicable.
FLANGED CONNECTORS, THREADED CONNECTORS AND CROSS OVER CONNECTORS
Flanged, threaded and crossover connectors are used to switch between or as transition pieces in different size/pressure rating configurations. All products will have minimum OAL and shall have overall dimensions, Wall thicknesses in compliance with design requirements under API 6A standard.
Weld neck flanges ,bull plugs and other loose connectors like blind, doublestudded, target flanges ( with & without lead filling) & test flanges with customer specified NPT or Autoclave port configurations can be manufactured with best lead time possible from our facility.
TEES AND CROSSES
Studded and open face Flanged Tees, crosses with API connectors and other end connections as per API 6 A specs is manufactured by EMMET.
TOP CONNECTORS AND TUBING HEAD ADAPTERS
Top connectors provide access to Christmas tree bores and can be supplied with lift threads specified by the customer which are only meant for lifting purposes and not for pressure containment.
Tubing head adapters are supplied by EMMET as independent piece of Equipment only.
Configurations are as per customer requirements based on the completion method used in the well. They provide means to connect seal and tubing bores or to suspend tubing strings. Lower and upper connections of the adapter shall be flanged, studded or other end connector in accordance with API 6A standards
